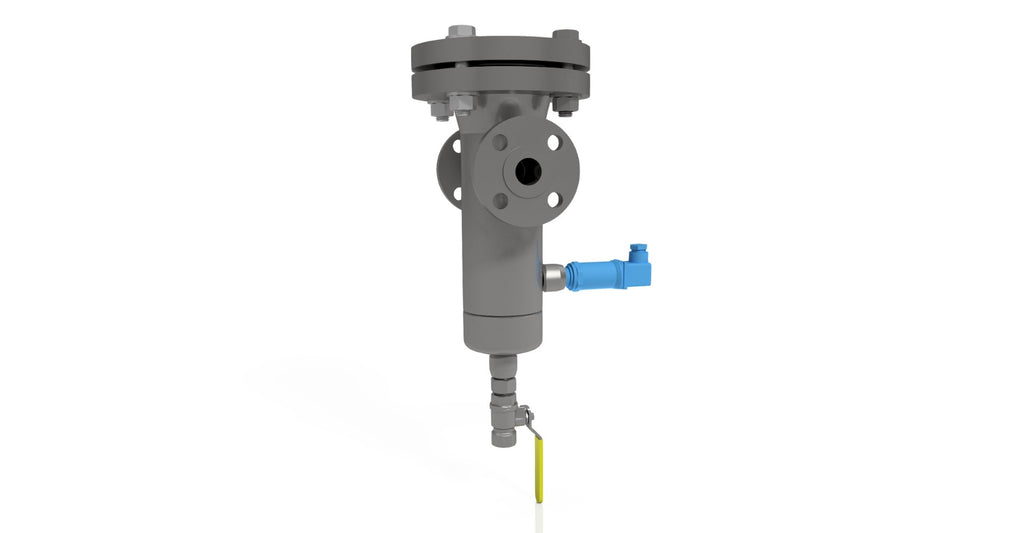

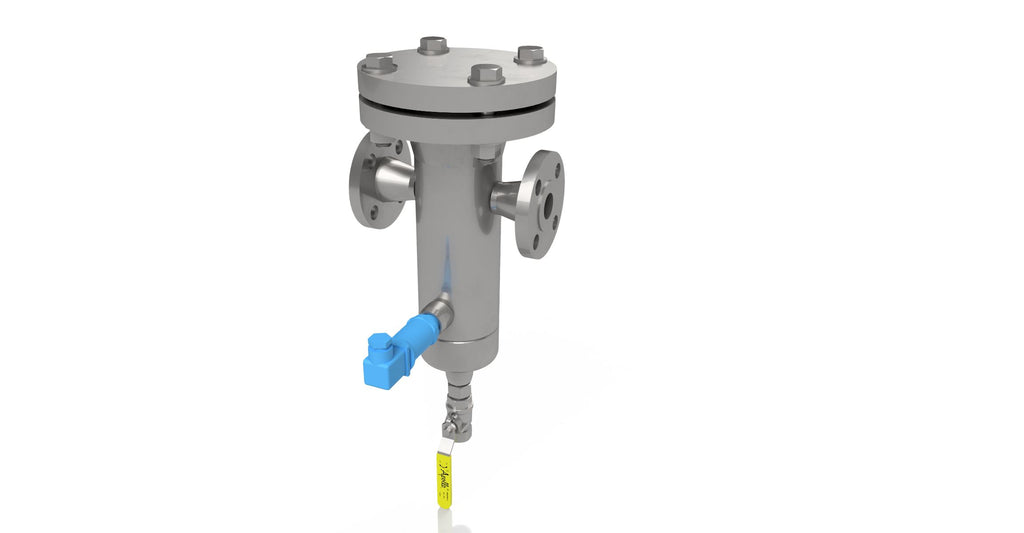

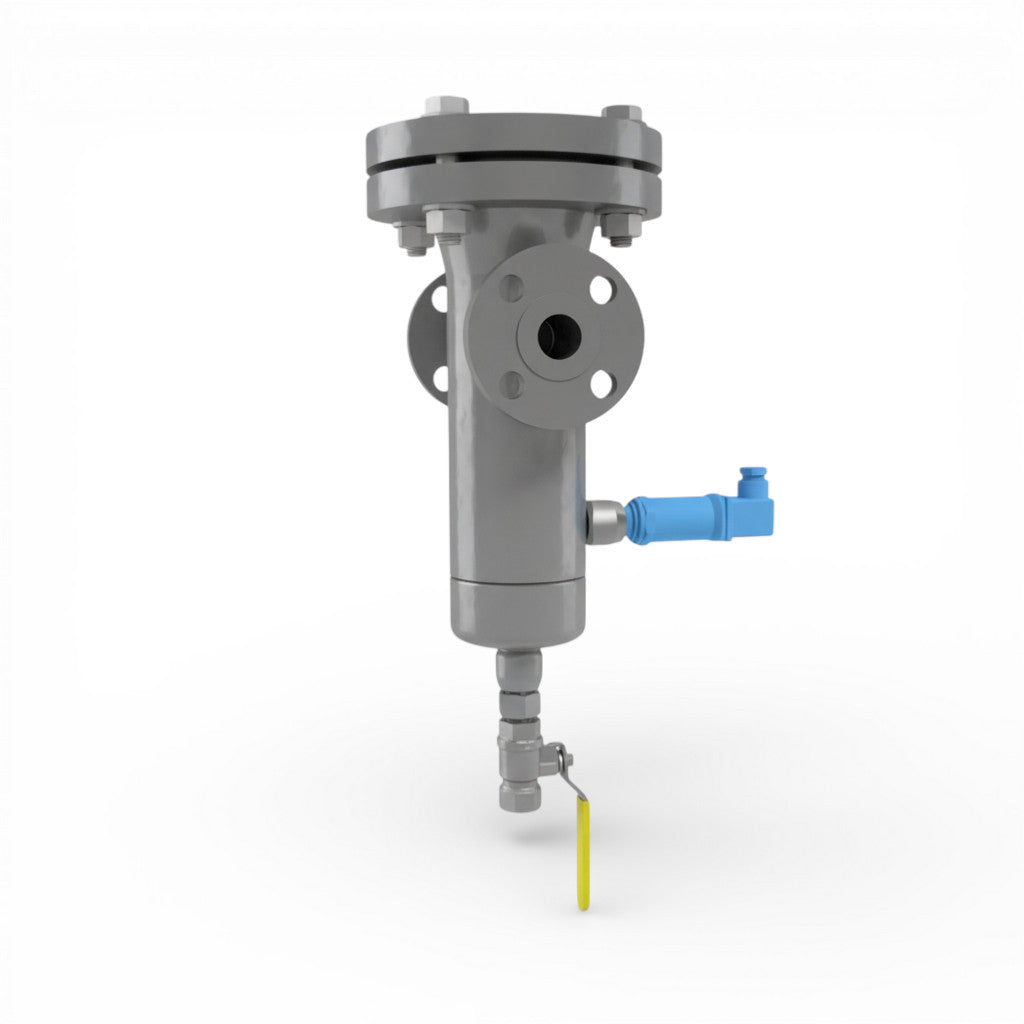

316 SS Liquid Traps
Our 316 Stainless Steel Liquid Traps provide a durable, gravity‑based solution for removing condensate, entrained liquids, and debris from process piping systems. Designed to protect downstream equipment, these traps are commonly used in air, steam, gas, and liquid service across water, wastewater, and industrial applications.
Constructed from 316 stainless steel, the liquid traps offer excellent corrosion resistance in aggressive environments, including chlorinated water, brine, ozonated water, and industrial process fluids. The vertical separator body promotes effective gravity separation, allowing liquids to collect at the bottom of the vessel for controlled drainage.
The traps are designed for horizontal process flow or drop‑leg installation on vertical piping systems, ensuring proper separation while maintaining system performance. Available with threaded or flanged connections, each unit includes a drain connection and may be equipped with a drain valve and optional level switch for blow‑down, monitoring, and maintenance.
Designed for reliability, ease of installation, and long service life, Pureflow Liquid Traps offer an effective, low‑maintenance solution for liquid and condensate removal in critical process lines.
Key Features & Benefits
- 316 Stainless Steel Construction: Excellent corrosion resistance for water, wastewater, and chemical service
- Gravity‑Based Separation Design: Vertical vessel promotes effective condensate and liquid collection
- Designed for Proper Installation: Suitable for horizontal line service or drop‑leg use on vertical piping systems
- Multiple Connection Options: Available with NPT or flanged process connections
- Integrated Drain Provision: Includes drain connection with optional valve and level switch
- Smooth Internal Finish: Reduces fouling and simplifies cleaning and maintenance
