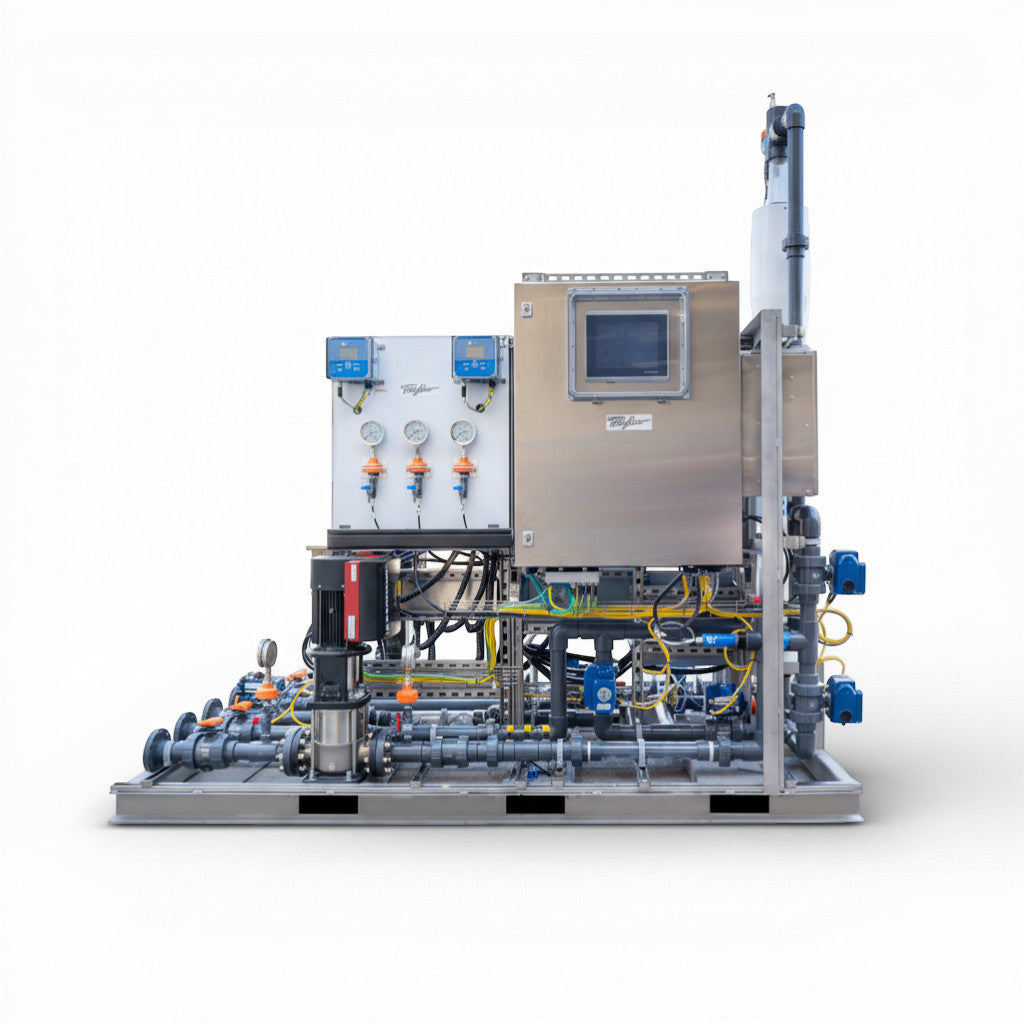

Ultrafiltration Rental/Pilot Equipment

ULTRAFILTRATION PILOT/RENTAL SYSTEM

•  Fully automated and self-cleaning

•  Filtration flux: 59-235 GFD or 11-43 GPM

•  Captures suspended solids, turbidity, bacteria, and
     pathogens greater than 0.01-0.1 µ / 30 nm

•  98% recovery rate

•  Aluminum oxide ceramic membrane (Nanostone)

•  Dead-end, inside / out membrane filtration

•  Remote monitoring and control

•  Data trending

•  VFD controlled feed pump, backwash pump, and
    chemically enhanced backwash (CEB) pump

•  Chemical feed pre / post-treatment

•  Online analyzers (TDS, pH, Free Cl2, Temp)

•  Flexible power options

o    460VAC / 3pH / 60Hz
o    230VAC / 3pH / 60Hz
o    208VAC / 3pH / 60Hz

•  Air-conditioned control panel

•  Feed water tank with automatic level control

•    Treated water storage / backwash water supply tank with automatic level control

•    CIP tank with automatic level and temperature control

•    Modular design ideal for crate shipment rather than a costly containerized system

•  Skid Dimensions: 102" long X 48" deep X 90" high
