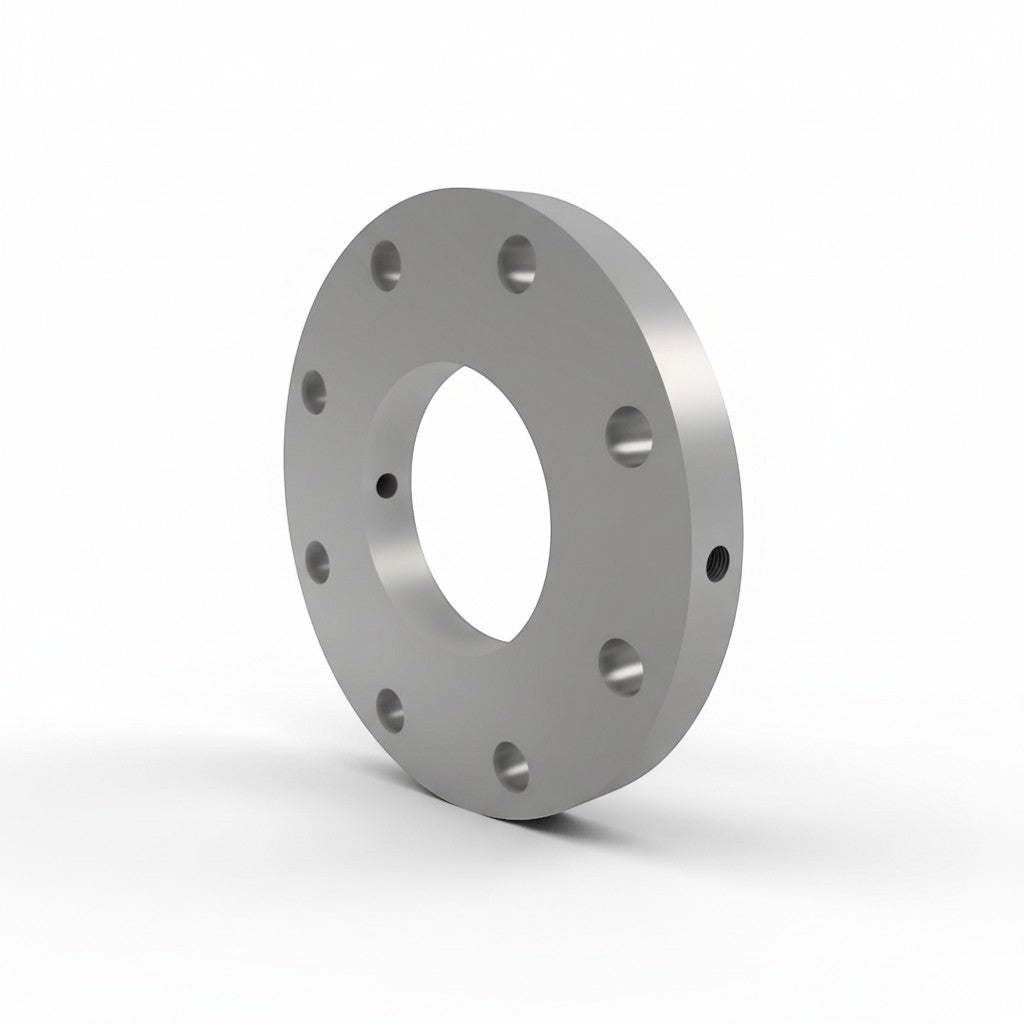

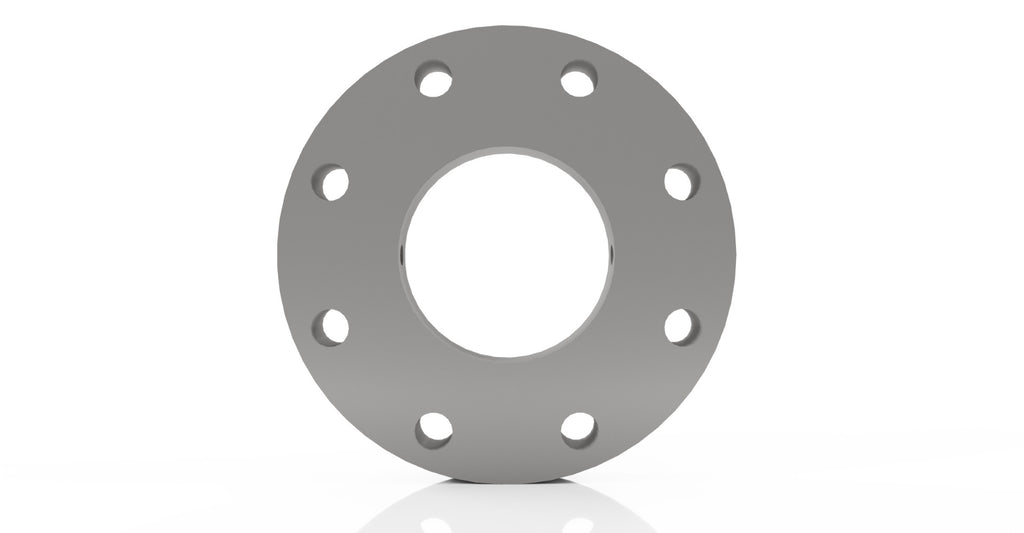

316 Stainless Steel Ported Flanges

Our Ported Flanges provide a versatile, space‑efficient solution for adding instrumentation and process connections to existing flanged piping systems. Designed as 316 stainless steel inserts installed between standard pipe flanges and gaskets, these ported flanges allow auxiliary connections to be added without modifying the pipe, vessel, or primary flange components.

Each ported flange features precision‑drilled and tapped ports, enabling a wide range of uses including pressure gauge connections, instrumentation take‑offs, vents, drains, chemical injection points, and sampling connections. This flexible design allows operators and engineers to add or reconfigure access points while maintaining the integrity of the primary piping system.

Manufactured from 316 stainless steel, the ported flanges offer excellent corrosion resistance and mechanical strength, making them well‑suited for water and wastewater treatment applications as well as chemically aggressive environments. The low‑profile insert design fits cleanly between mating flanges and standard gaskets, minimizing changes to face‑to‑face dimensions while providing added functionality.

Ideal for both new installations and retrofit applications, Ported Flanges offer a clean, standardized method for expanding system capabilities without cutting pipe or welding additional fittings. Proudly manufactured in the USA.

Key Features & Benefits

• Drilled & Tapped Ports: Supports pressure gauges, instrumentation connections, vents, drains, chemical injection, and sampling points
• 316 Stainless Steel Construction: Provides excellent corrosion & checmial resistance and durability in treatment and process environments
• Installs Between Standard Flanges: Fits between mating flanges and gaskets without permanent system modification
• Low‑Profile Insert Design: Adds functionality while minimizing impact to existing piping layout
• Ideal for Retrofit Applications: Allows system upgrades or instrumentation additions without pipe cutting or welding
• Versatile, Multi‑Use Solution: One component supports multiple monitoring and connection needs
