Compressed Air Manifolds
Pickup currently not available

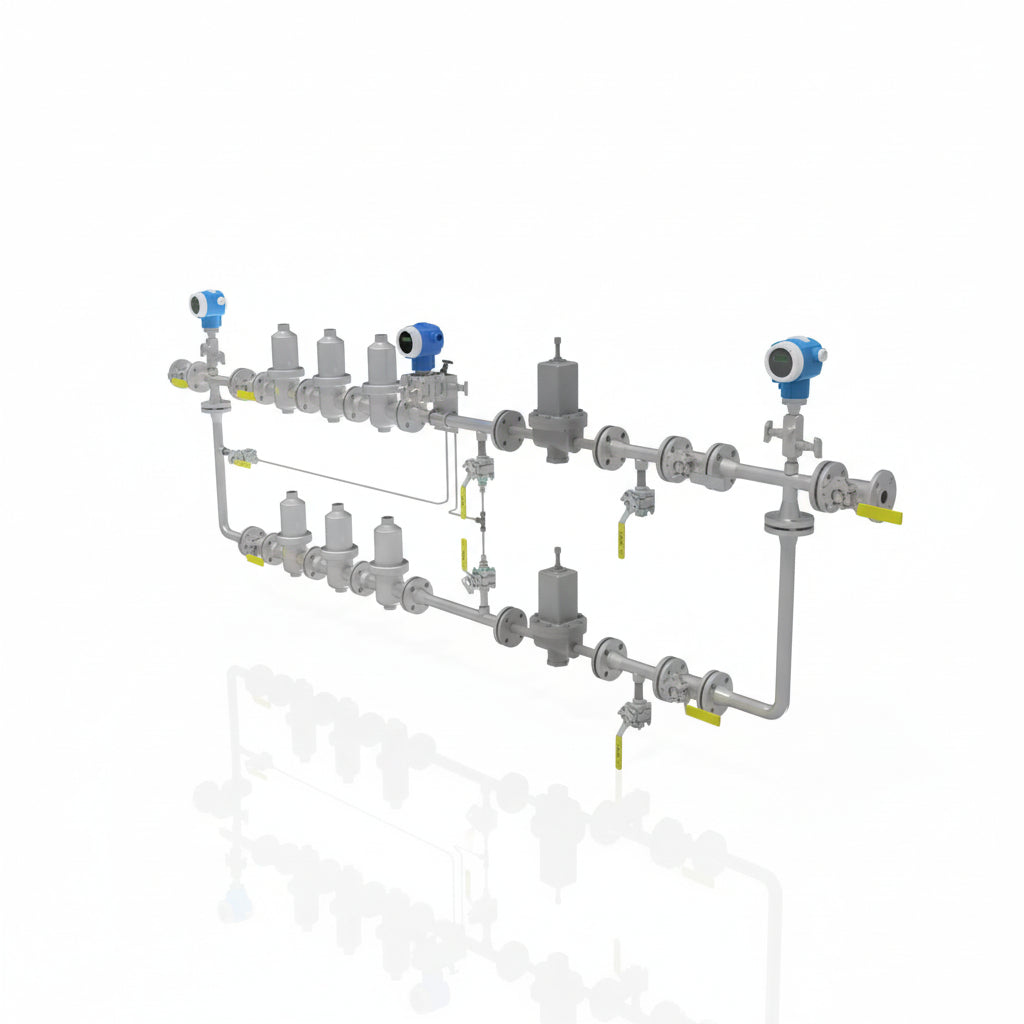

Our Compressed Air Manifold is a factory‑assembled utility manifold designed to condition compressed air supplied from plant compressors or receiver systems. The assembly filters, regulates, and distributes clean, stable air to downstream pneumatic equipment, instrumentation, or process skids.

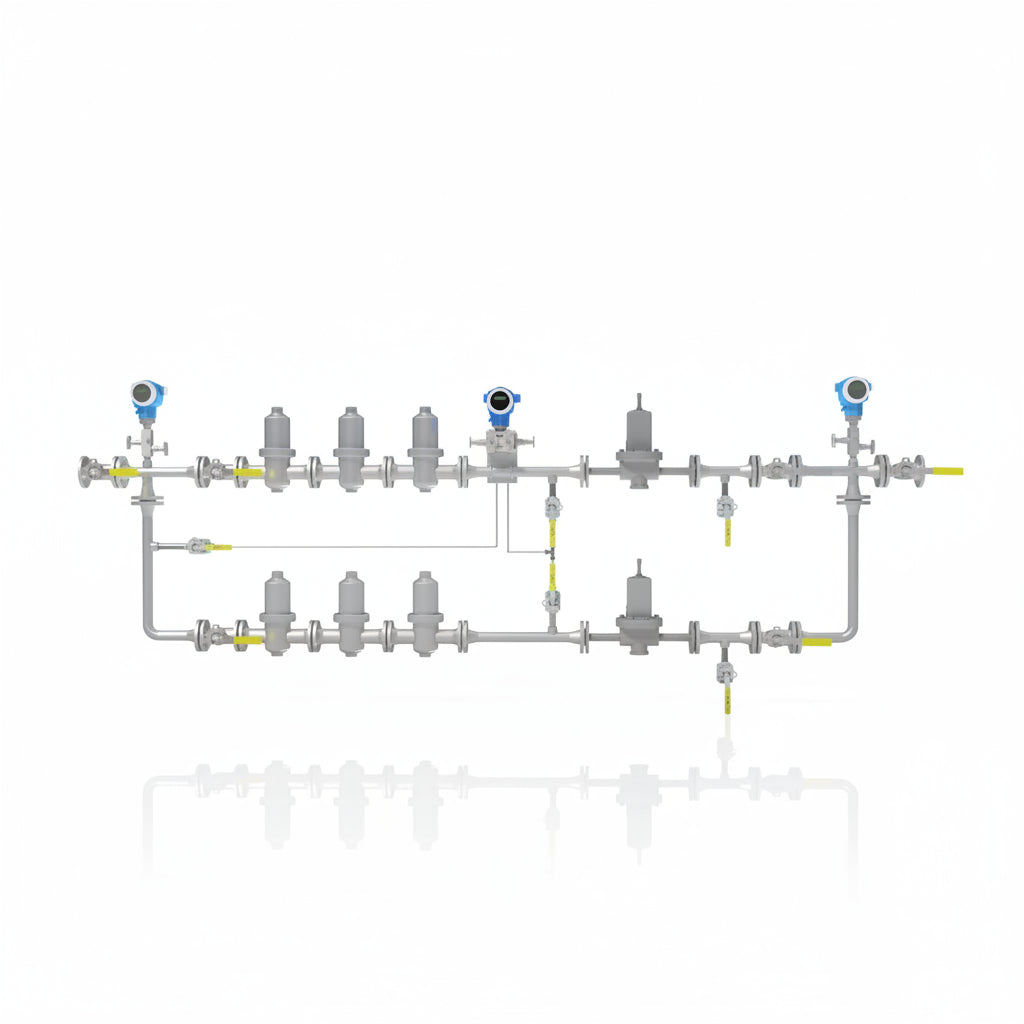

The manifold is configured with dual, parallel filtration and pressure‑regulation trains arranged in a pressure‑biased duty/standby configuration. Under normal operation, one train supplies regulated air while the second remains pressurized in standby and becomes available if the primary train is isolated or unable to maintain downstream pressure (such as during filter loading or maintenance).
Constructed from corrosion‑resistant stainless steel and arranged for serviceability, the manifold provides reliable compressed air conditioning for continuous industrial operation. Units may be wall mounted or installed on a freestanding support stand. Proudly manufactured in the USA.
Key Features & Benefits
- Dual Duty / Standby Trains: Parallel filtration and regulation paths provide redundancy, allowing one train to remain in service while the other is isolated for maintenance
- Pressure‑Biased Regulation: Differing regulator setpoints prevent regulator interaction and ensure only one train carries flow under normal operation
- Multi‑Stage Air Filtration: Removes particulates and entrained moisture to protect downstream pneumatic devices and controls
- Controlled Downstream Pressure: Pressure‑reducing regulators deliver consistent, project‑specific air pressure to downstream users
- Flexible Mounting Options: Suitable for wall mounting or installation on a freestanding support stand
- Stainless Steel Construction: Fabricated with 316/316L stainless steel piping and components for corrosion resistance and long service life
